Large Format CO2 Laser Engraving Cutting Machine Price

FOB Reference Price:Get Latest Price
$5,000.00 - $60,000.00 / Sets | 1 Set/Sets (As Customer's Order) (Min. Order)
Report Suspicious Activity
Product Hightlights
Laser Type After-sales Service Provided Applicable Material
CO2 -- --
Laser Cutting
Place of Origin:
Hubei, China (Mainland)
Brand Name:
Golden Laser
Model Number:
JMSZJJG(3D)-130250DT laser engraving cutting machine
laser engraving cutting machine
Machine type:
gantry X,Y axis cutting and Galvo engraving laser machine
Laser Tube:
CO2 RF metal laser tube
Laser Power:
Working Area:
Galvo Engraving Area:
Processing Speed:
Motion System:
Servo motor
Cooling System:
Constant temperature water-chiller
Format Support:
AI, BMP, PLT, DXF, DST, etc.
Supply Ability
Supply Ability:
6000 Set/Sets per Year (Customized Model Acceptable)
Packaging & Delivery
Packaging Details
Wooden Case Package
Lead Time :
7~15 Working Days


laser engraving cutting machine
1.gantry X,Y axis cutting
2.galvanometer laser engraving
3.for mdf,wood,acrylic,plastic

CO2 Laser Engraving Cutting Machine Price

Laser Engraving Cutting Machine Features:

This laser machine combines two different laser functions together. X-Y Gantry system for large format and high precision cutting; Germany Galvo system for fast and precise engraving. Two systems only share one laser tube and can switch freely. Ball screw transmission ensures the two systems running stable. Galvanometer scanning system for very fast and large pattern engraving. Coherent or Synrad CO2 RF metal laser tube produces high quality laser beam, stable power and long working life. Low use-cost, maintenance-free and high efficiency.

Laser Engraving Cutting Machine Specifications:

1. Elegant exterior design. Steel girder welding structure, solid and reliable working table. Large format working area, high speed, high precision and wide range of application.

2. With the world’s top USA II-VI laser optic lens. The lens of less energy loss, high reflectivity, strong focusing and durable.

3. South Korea patented high speed linear motion guide rail. Rail can be adjusted to ensure the accuracy after some time of movement.

4. The key parts use the current international popular and advanced precision ball screw, with professional precision laser heads, it has the features of small kerf, high speed and high precision.

5. Motion systems select Japanese servo motor and drive. And it has advanced speed control system. According to the cutting requirement of curve and straight line, it has the function of automatically adjust the speed, ensuring smooth cutting edges and natural curves. Running stable and fast speed.

6. This device uses a fully enclosed professional cooling water circulation system to ensure the circulation of water in the laser tube to be clean without dust. It achieves good results to extend the life of the laser tube, effectively reducing the cost of production.

7. Good air suction systems totally discharge smoke and fume from materials being cut to keep good environment and high precision of the machine.

8. Off-line control system. There are a variety of input methods, such as USB flash disk, USB cable transmission and Cable connection. Easy to use. One computer controls multiple laser machines for cost saving.

9. For software, all using professional cutting software (independently researched and developed by GoldenLaser. It is compatible with CAD, BMP, CorelDraw, DST, PLT and other related software. It combines graphics layout and control output in one. Unique design, friendly interface and easy to use. And you enjoy permanent free upgrades of the software.

Laser Engraving Cutting Machine Application Field:

Applicable Materials: Wood, Plywood, Bamboo, MDF, Balsa, Veneer Inlays, Acrylic, Acryl, PMMA, Perspex, Plexiglas, Plexiglass, Organic Glass, ABS, Double Color Board, Rubber Sheet, Plastic, Industrial Plastics (PP, PE, PET, PVC, ABS, PA, PS, PC, etc.), Paper, Corrugated Paper, Cardboard, Pressboard, Paperboard, Chipboard, Thin Sheet Metal, etc.

Applicable Industries: Advertising Industry, Advertising Signs, Advertising Letters, Metal Letters, Nameplates, LED light guide panels (LGP), Plastic Industry, Printing & Packing Industry, Gifts & Crafts, Promotional Items, Plaques, Trophies, Awards, Bangles, Badges, Tags, Decorations, Souvenirs, Precise Ornaments, Models, Architectural Models, Furniture Marquetry, Parquet Floors, etc.


Technical Parameter

Model No.



Laser Type

CO2 RF metal laser tube

Laser Power

100W / 150W / 200W / 300W / 400W

Working Area



Galvo Engraving Area (one time)



Working Table

Zinc-iron honeycomb working table

Strip panel working table

Processing Speed


Repeating Location Accuracy


Motion System

Off-line Servo control system, lead-screw driving

Cooling System

Constant temperature water-chiller

Power Supply

AC220V ± 5% / 50Hz

Format Support

AI, BMP, PLT, DXF, DST, etc.

Working size and laser power can be customized according to requirement.

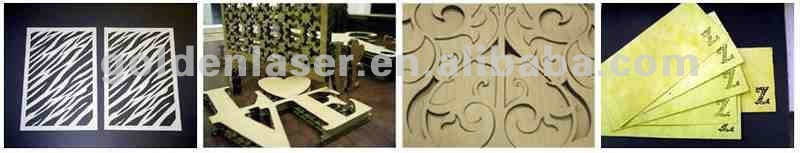

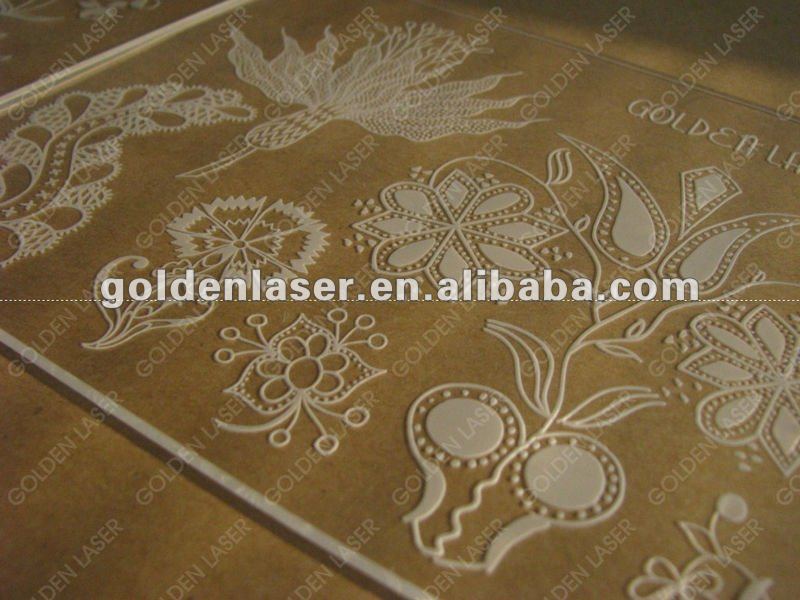

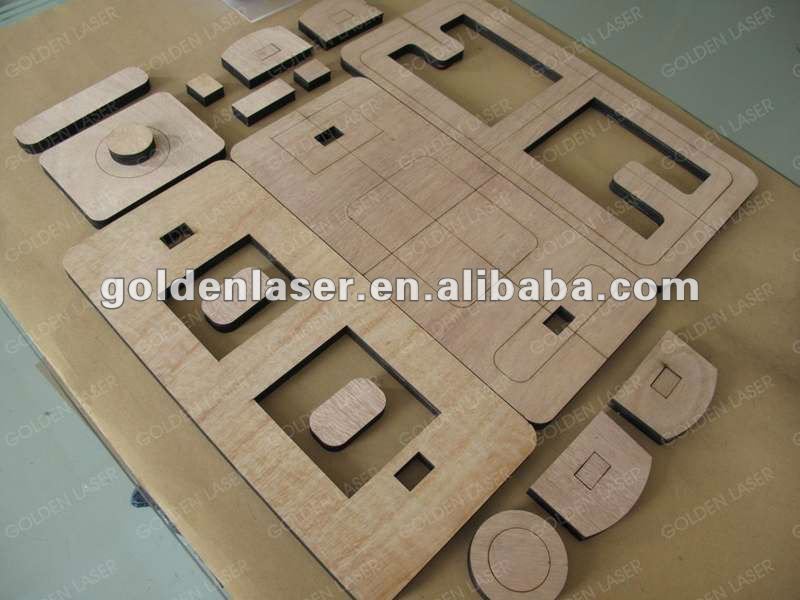

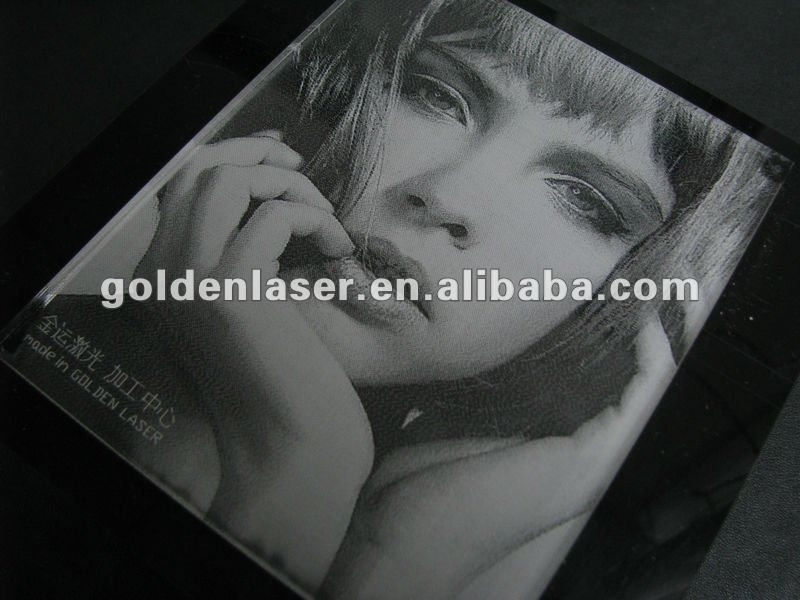

Laser Engraving Cutting Samples:
